4943.773.8
Additional information
| Name |
|---|

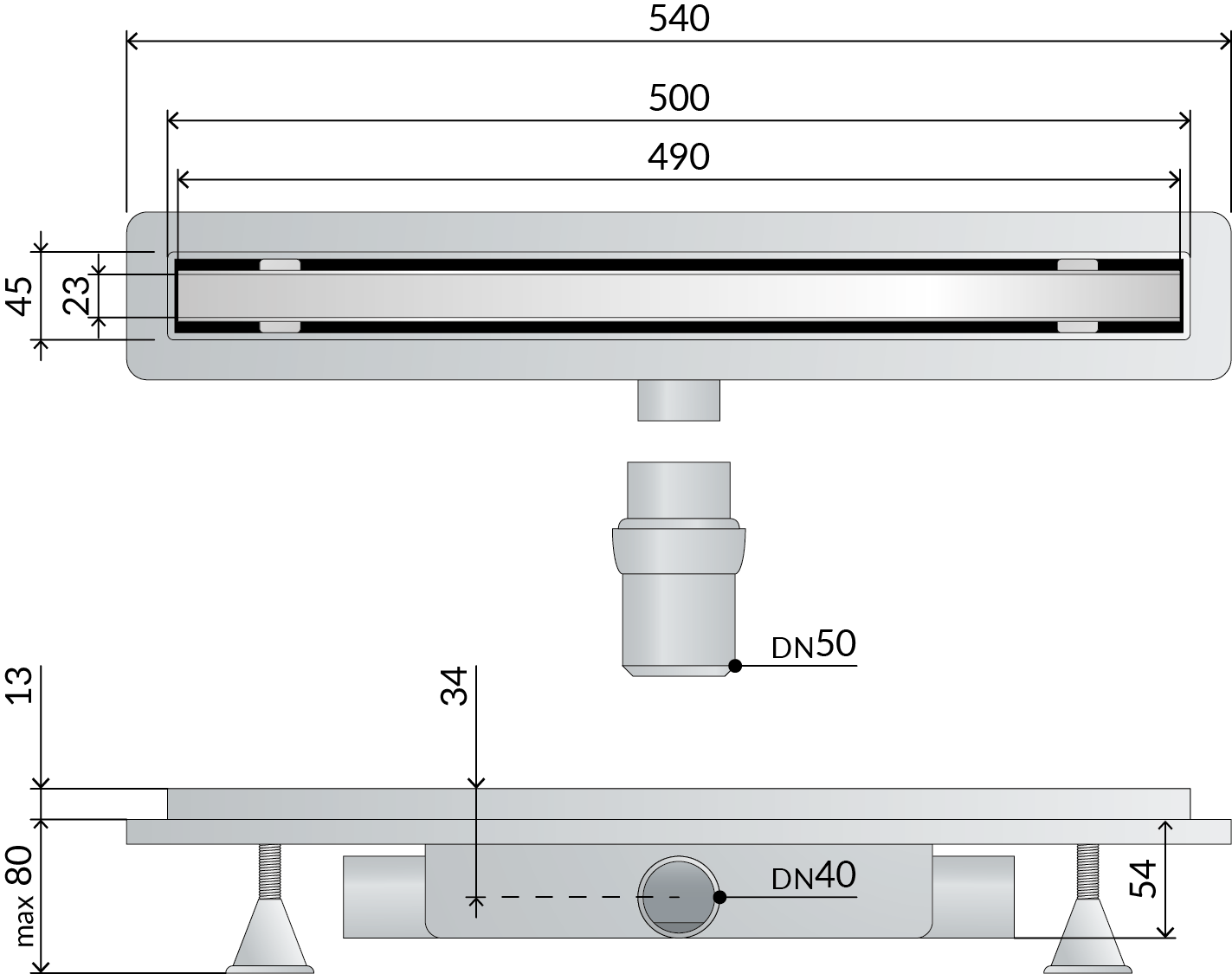

ABS channel for built-in shower with thin bed waterproofing system
- grid L. 500
- AISI 316 stainless steel grid tileable only
- thin bed system perimetric waterproofing
- with dry trap (removable)
- adjustable supports to ease the installation
- dry-spot, drainage point for the water filtered through the flooring
- ABS lateral outlet DN40
- two additional outlets
- ABS jointed tailpiece DN50
- tiling thickness 13
- room under floor H. 54
Water seal (mm)
Additional information
Water volume (lt/min)
Additional information
| Water volume | 39 |
|---|
Overflow water volume (lt/min)
Additional information
Measures
Additional information
| Measure | L.500×DN40/50 |
|---|
Tiling height (mm)
Additional information
| Misura-HT | 13 |
|---|
Screed thickness (mm)
Additional information
| Misura-HM | 54 |
|---|
